MCN-1008-0168
MCN-1008-0168
Description
Wafer. 2.0mm, 4 Pins, 180 Deg., DIP
PREV PRO.
Inquiry
NEXT PRO.
Product Specification
SPECIFICATIONS
Contact Current Rating ：AC/DC250V 3A
Withstanding Voltage： 800V AC /1 Minute
Insulator Resistance ： 1,000 MΩ Min.
MATERIAL
Housing：Nylon UL94V-0
Contact Plated：Brass Tin Plated
Operation Temperature：- 25℃ to + 85℃

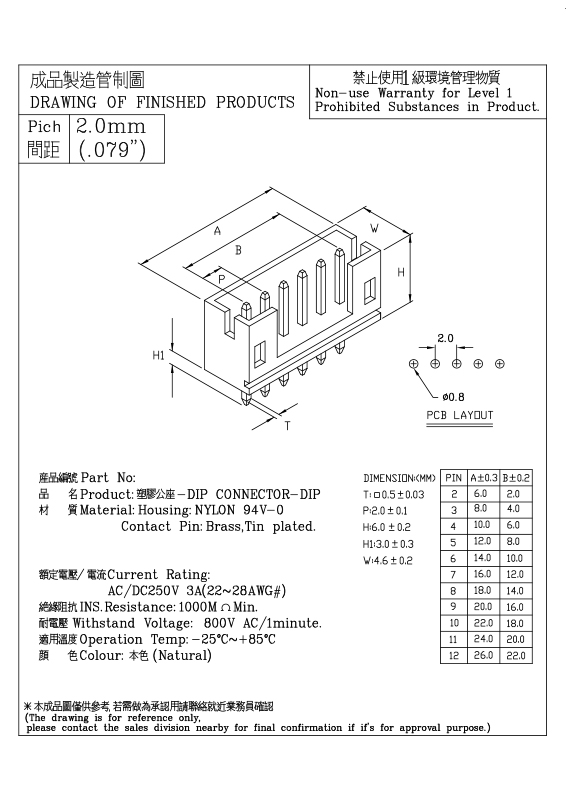

DIMENSION(mm)
PIN
A+/-0.3
B+/-0.2
2
6
2
3
8
4
4
10
6
5
12
8
6
14
10
7
16
12
8
18
14
9
20
16
10
22
18
11
24
20
12
26
22
Pins can be selected.
