MCN-1008-0172

  • Wafer Connector
  • Wafer Connector
  • Wafer Connector
  • Wafer Connector
Description

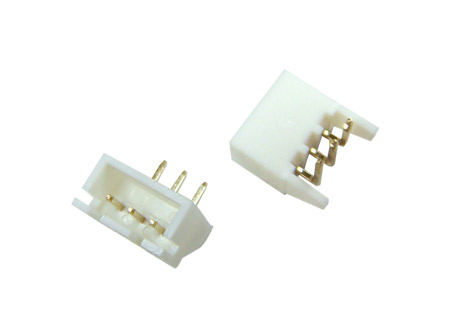

Wafer. 2.5mm, 2 Pins, 90 Deg., H7mm, G/F, CW325
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：AC/DC250V 3A
  • Withstanding Voltage： 1000V AC /1 Minute
  • Insulator Resistance ： 1,000 MΩ Min.

MATERIAL

  • Housing：Nylon UL94V-0
  • Contact Plated：Brass Tin Plated
  • Operation Temperature：- 25℃ to + 85℃

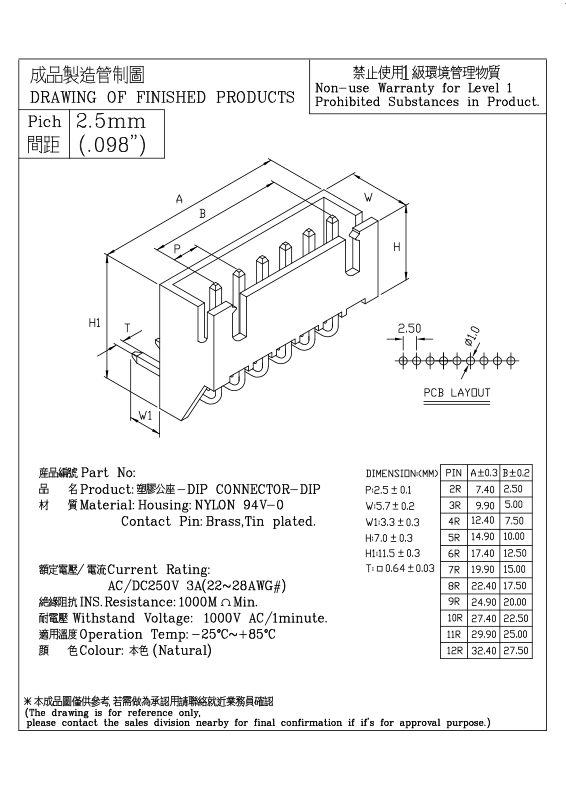

  DIMENSION(mm)
PIN A+/-0.3 B+/-0.2
2R 7.4 2.5
3R 9.9 5.0
4R 12.4 7.5
5R 14.9 10.0
6R 17.4 12.5
7R 19.9 15.0
8R 22.4 17.5
9R 24.9 20.0
10R 27.4 22.5
11R 29.9 25.0
12R 32.4 27.5

Pins can be selected.
