MCN-1008-0062
MCN-1008-0062
Description
Wafer. 2.0mm, 4 Pins, 90 Deg., JM24181-4R
PREV PRO.
Inquiry
NEXT PRO.
Product Specification
SPECIFICATIONS
Contact Current Rating ：AC/DC 250V, 3Amp
Dielectric Withstanding Voltage： 800 V AC /1 Minute
Insulator Resistance ： 1,000 MΩ Min
Operation Temperature：- 25℃ to + 85℃
MATERIAL
Insulator ：Nylon UL94V-0
Contact Pin： Brass Tin Plated

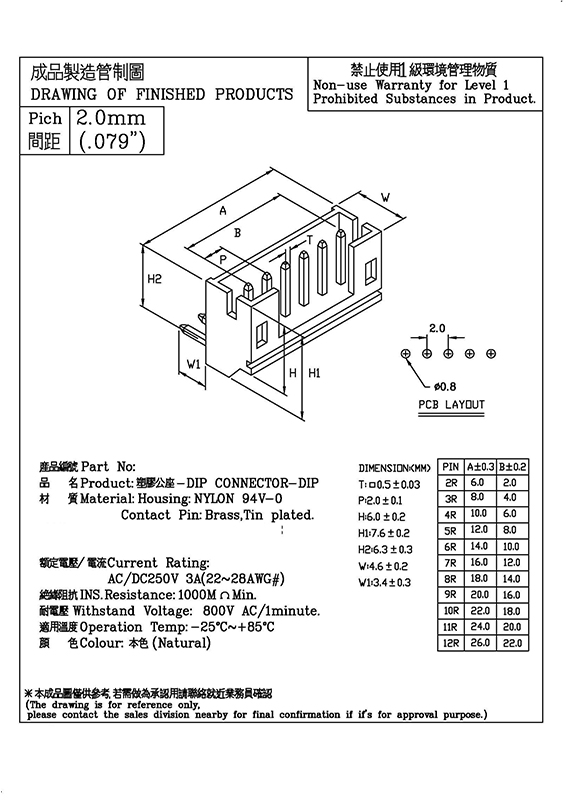

DIMENSION(mm)
PIN
A
B
2
6
2
3
8
4
4
10
6
5
12
8
6
14
10
7
16
12
8
18
14
9
20
16
10
22
18
11
24
20
12
26
22
Pins can be selected.
