Description

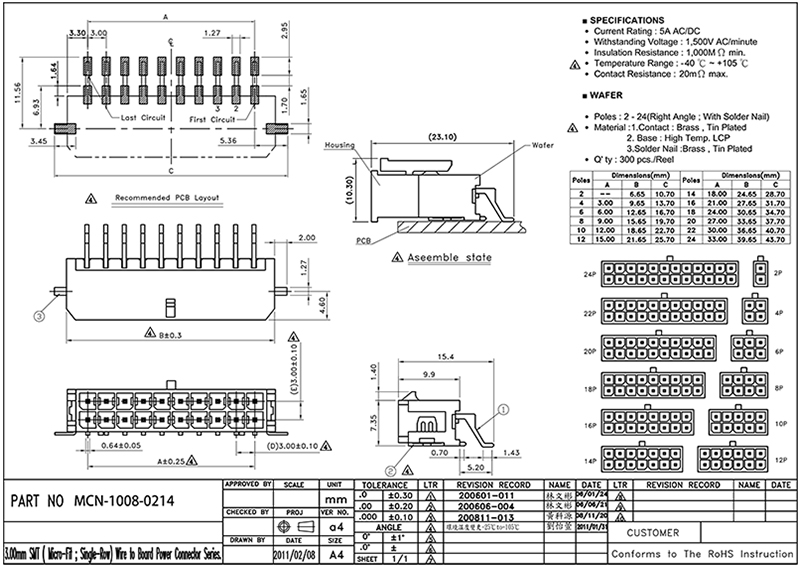

Wafer. 3.0mm, 2*10 Pins, 90 Deg., MicroFit, SMT
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：5A AC/DC
  • Withstanding Voltage： 1500V AC /1 Minute
  • Insulator Resistance ： 1,000 MΩ Min.
  • Contact Resistance：20m Ω max.
  • Operation Temperature：- 40℃ to + 105℃

MATERIAL

  • Pole：2-24(Right Angle ; With Solder Nail)
  • Contact：Brass, Tin Plated
  • Base：High Temp. LCP
  • Solder Nail： Brass, Tin Plated
DIMENSION(mm) DIMENSION(mm)
Contacts A B C Contacts A B C
2 -- 6.65 10.7 14 18 24.64 28.7
4 3.00 9.65 13.7 16 21 27.65 31.7
6 6.00 12.65 16.7 18 24 30.65 34.7
8 9.00 15.65 16.7 20 27 33.65 37.7
10 12.00 18.65 22.7 22 30 36.65 40.7
12 15.00 21.65 25.7 24 33 39.65 43.7

Pins can be selected.
