MCN-1008-0170

  • Wafer Connector
  • Wafer Connector
  • Wafer Connector
  • Wafer Connector
Description
Wafer. 3.0mm, 2*2 Pins, 180 Deg., MicroFit, JM2316
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：AC/DC250V 5A
  • Withstanding Voltage： 1500V AC /1 Minute
  • Insulator Resistance ： 1,000 MΩ Min.

MATERIAL

  • Housing：Nylon UL94V-0
  • Contact Plated：Brass Tin Plated
  • Operation Temperature：- 25℃ to + 85℃

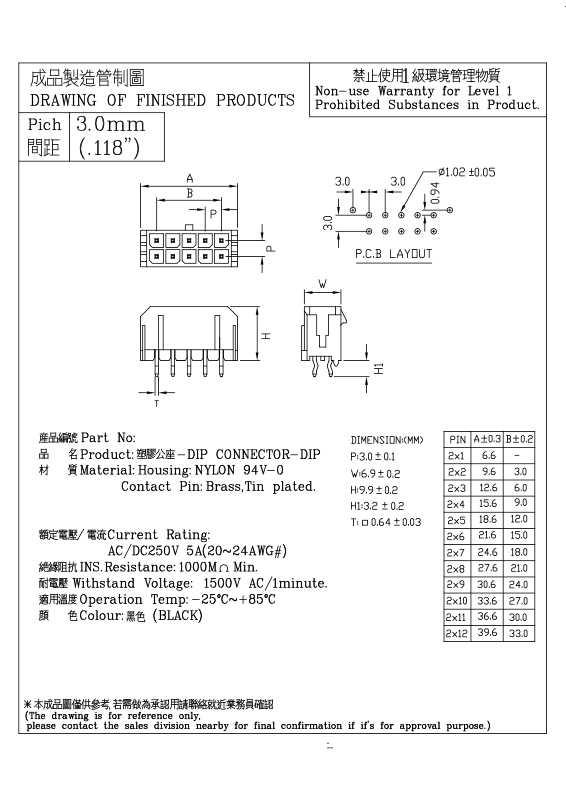

  DIMENSION(mm)
PIN A+/-0.3 B+/-0.2
2x1 6.6 --
2x2 9.6 3.0
2x3 12.6 6.0
2x4 15.6 9.0
2x5 18.6 12.0
2x6 21.6 15.0
2x7 24.6 18.0
2x8 27.6 21.0
2x9 30.6 24.0
2x10 33.6 27.0
2x11 36.6 30.0
2x12 39.6 33.0

Pins can be selected.
