MCN-1008-0026

  • Wafer Connector
  • Wafer Connector
Description
Wafer. 3.96mm, 6 Pins, 90 Deg., H=12.25mm, JM2422
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating :AC/DC 250V, 10 Amp
  • Dielectric Withstanding Voltage: 1000 V AC RMS 60 Seconds
  • Insulator Resistance : 1,000 MΩ Min
  • Operation Temperature:- 25℃ to + 85℃

MATERIAL

  • Insulator :Nylon UL94V-2
  • Contact Pin: Brass Tin Plated

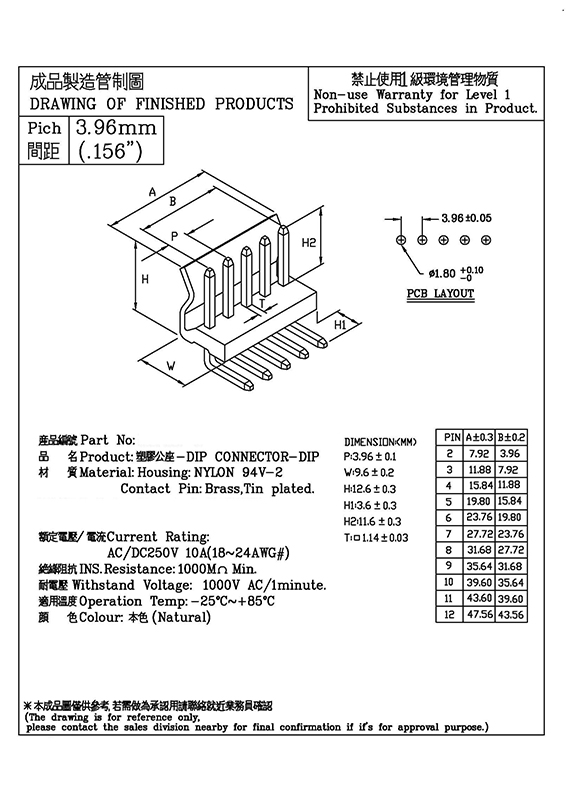

  DIMENSION(mm)
PIN A B
2 7.92 3.96
3 11.88 7.92
4 15.84 11.88
5 19.8 15.84
6 23.76 19.8
7 27.72 23.76
8 31.68 27.72
9 35.64 31.68
10 39.6 35.64
11 43.6 39.6
12 47.56 43.56

Pins can be selected.
