MCN-1008-0153

  • Wafer Connector
  • Wafer Connector
Description
Wafer. 2.0mm, 2 Pins, 90 Deg., SMD, 2A, 4172-2
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：2A AC/DC
  • Withstanding Voltage： 800V AC /1 Minute
  • Insulator Resistance ： 1,000 MΩ Min.
  • Contact Resistance：20m Ω max.

MATERIAL

  • Insulator ：Nylon 46 UL94V-0
  • Contact：Phos. Bronze
  • Contact Plated：Tin Plated
  • Operation Temperature：- 25℃ to + 85℃

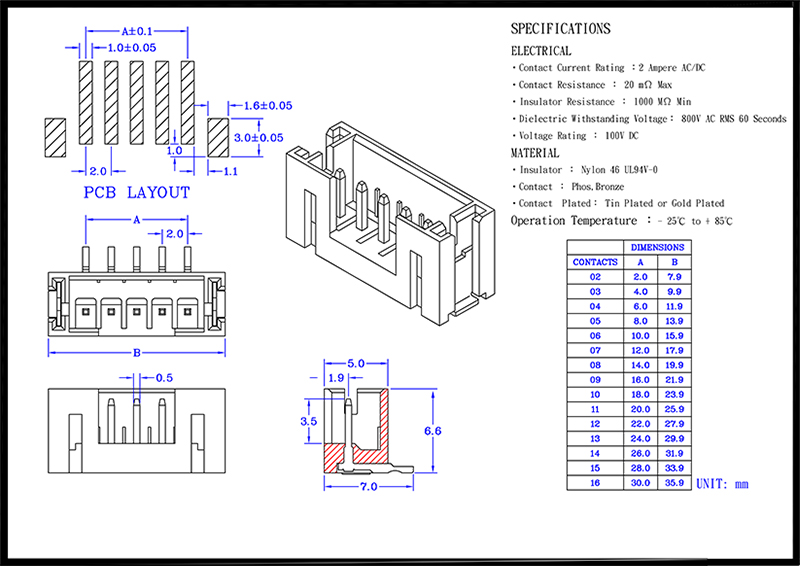

  DIMENSION(mm)
PIN A B
2 2.0 7.9
3 4.0 9.9
4 6.0 11.9
5 8.0 13.9
6 10.0 15.9
7 12.0 17.9
8 14.0 19.9
9 16.0 21.9
10 18.0 23.9
11 20.0 25.9
12 22.0 27.9
13 24.0 29.9
14 26.0 31.9
15 28.0 33.9
16 30.0 35.9

Pins can be selected.
