Description

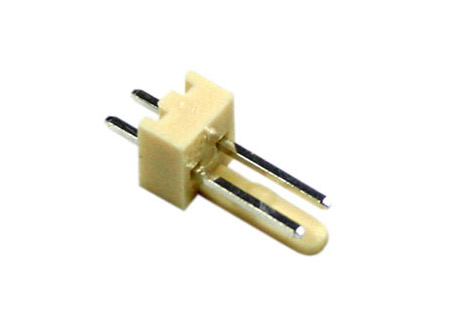

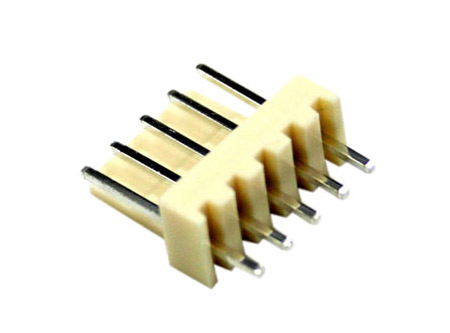

Wafer. 2.54mm, 3 Pins, 180 Deg., H11.7mm, JM2411
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：AC/DC 250V, 3 Amp
  • Contact Resistance ： 20 mΩ Max
  • Dielectric Withstanding Voltage： 1000 V AC RMS 60 Seconds
  • Insulator Resistance ： 1,000 MΩ Min
  • Operation Temperature：- 25℃ to + 85℃

MATERIAL

  • Insulator ：Nylon UL94V-2
  • Contact Pin： Brass Tin Plated

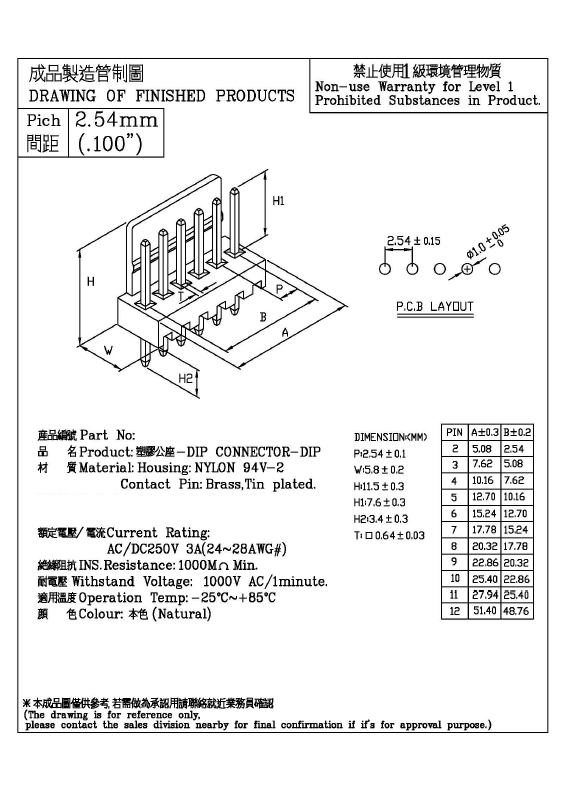

  DIMENSION(mm)
PIN A B
2 5.08 2.54
3 7.62 5.08
4 10.16 7.62
5 12.70 10.16
6 15.24 12.70
7 17.78 15.24
8 20.32 17.78
9 22.86 20.32
10 25.40 22.86
11 27.94 25.40
12 51.40 48.76

Pins can be selected.
