MCN-1008-0115
MCN-1008-0115
Description
Wafer. 4.2mm, 2*8 Pins, 180 Deg., JM2416-16
PREV PRO.
Inquiry
NEXT PRO.
Product Specification
SPECIFICATIONS
Contact Current Rating :AC/DC 250V, 5Amp
Dielectric Withstanding Voltage: 1000 V AC /1 Minute
Insulator Resistance : 1,000 MΩ Min
Operation Temperature:- 25℃ to + 85℃
MATERIAL
Insulator :Nylon UL94V-0
Contact Pin: Brass Tin Plated

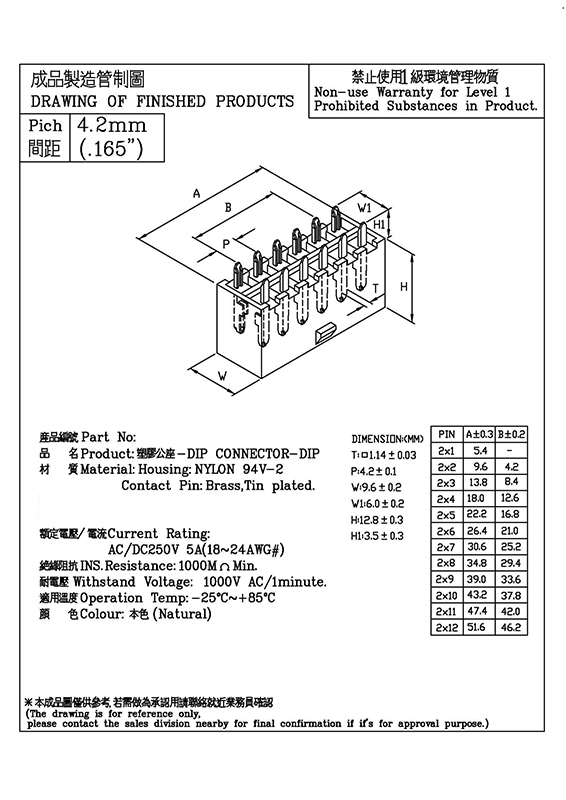

DIMENSION(mm)
PIN
A
B
2x1
5.4
-
2x2
9.6
4.2
2x3
13.8
8.4
2x4
18
12.6
2x5
22.2
16.8
2x6
26.4
21
2x7
30.6
25.2
2x8
34.8
29.4
2x9
39
33.6
2x10
43.2
37.8
2x11
47.4
42
2x12
51.6
46.2
Pins can be selected.
