MCN-1003-0077
MCN-1003-0077
Description

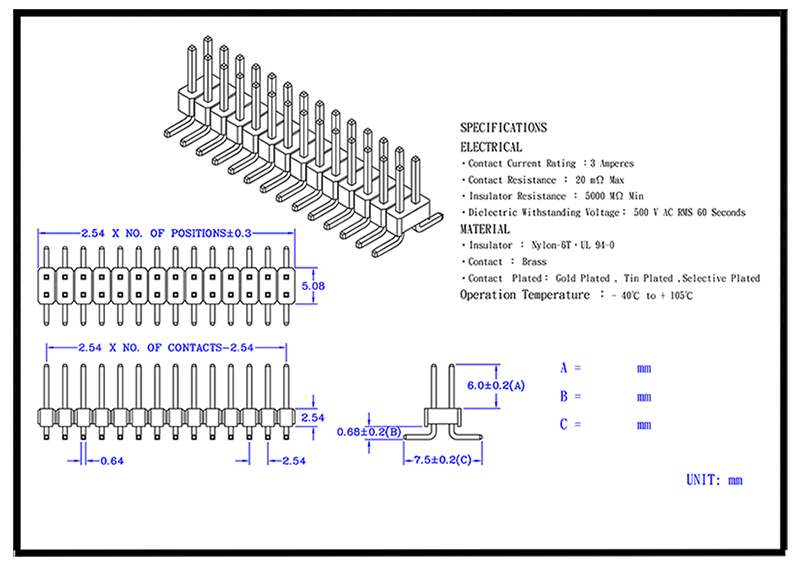

Pin Header. 2.54mm, 2*5 Pins, 180 Deg., SMD, w/ Post
PREV PRO.
Inquiry
NEXT PRO.
Product Specification
SPECIFICATIONS
Contact Current Rating ：3 Amp
Contact Resistance ： 20 mΩ Max
Insulator Resistance ： 5,000 MΩ Min
Dielectric Withstanding Voltage： 500V AC RMS 60 Seconds
MATERIAL
Insulator ： Nylon-6T, UL 94V-0
Contact ： Brass
Contact Plated： Gold Plated、Tin Plated
Operation Temperature ：- 40℃ to + 105℃
