MCN-1003-0022

  • MCN-1003-0022
  • MCN-1003-0022
Description

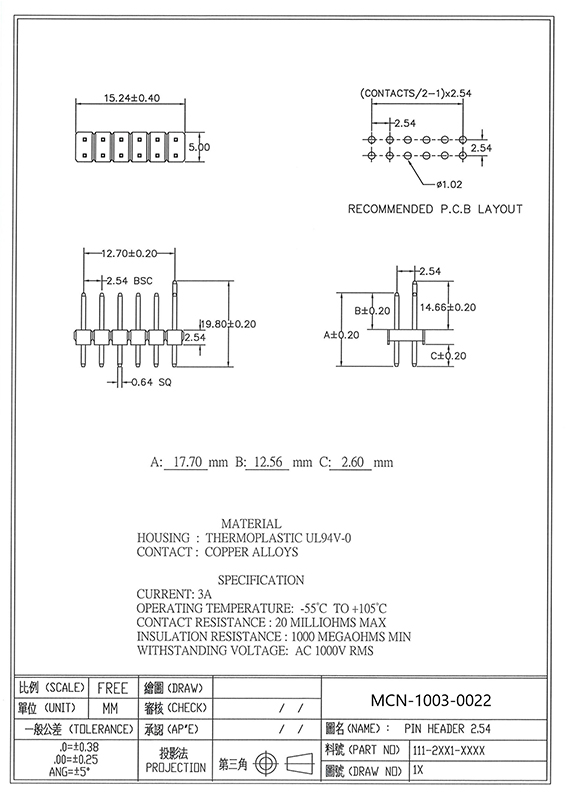

Pin Header. 2.5mm, 2*6 Pins, 180 Deg., Head=17.7 & 19.8mm, Tail=3.2mm, Plastic=2.6mm
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：3 Amp
  • Contact Resistance ： 20 mΩ Max
  • Insulator Resistance ： 1,000 MΩ Min
  • Dielectric Withstanding Voltage： 1000V AC RMS
  • Insulator ： UL 94V-0
  • Contact ： Copper Alloys
  • Contact Plated： Gold Plated、Tin Plated
  • Operation Temperature ：- 55℃ to + 105℃
