MCN-1003-0015

  • MCN-1003-0015
  • MCN-1003-0015
Description

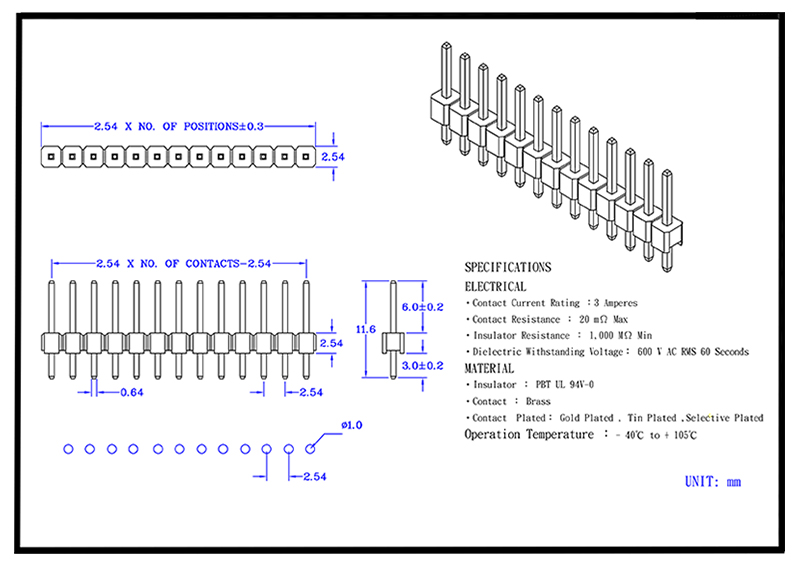

Pin Header. 2.54mm, 1*2 Pins, 180 Deg., DIP, PBT, C=2.5mm, H=6mm, T=3mm, G/F
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：3 Amp
  • Contact Resistance ： 20 mΩ Max
  • Insulator Resistance ： 1,000 MΩ Min
  • Dielectric Withstanding Voltage： 600V AC RMS 60 Seconds

MATERIAL

  • Insulator ： PBT, UL 94V-0
  • Contact ： Brass
  • Contact Plated： Gold Plated、Tin Plated
  • Operation Temperature ：- 45℃ to + 105℃
