MCN-1003-0052

  • MCN-1003-0052
  • MCN-1003-0052
Description

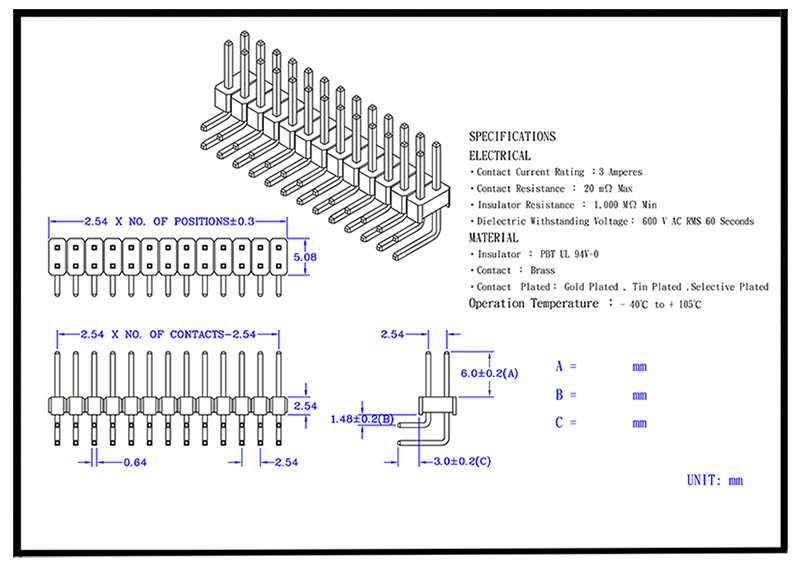

Pin Header. 2.54mm, 12*2 Pins, 90 Deg., DIP, PBT, Head=6mm, Tail=3mm, G/F
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：3 Amp
  • Contact Resistance ： 20 mΩ Max
  • Insulator Resistance ： 1,000 MΩ Min
  • Dielectric Withstanding Voltage： 600V AC RMS 60 Seconds

MATERIAL

  • Insulator ： PBT, UL 94V-0
  • Contact ： Brass
  • Contact Plated： Gold Plated、Tin Plated
  • Operation Temperature ：- 40℃ to + 105℃
