MCN-1009-0192
MCN-1009-0192
Description
Housing. 3.96mm, 5 Pins, A19.74mm, H13.3mm, JP24228, 9396-N 5 Pin
PREV PRO.
Inquiry
NEXT PRO.

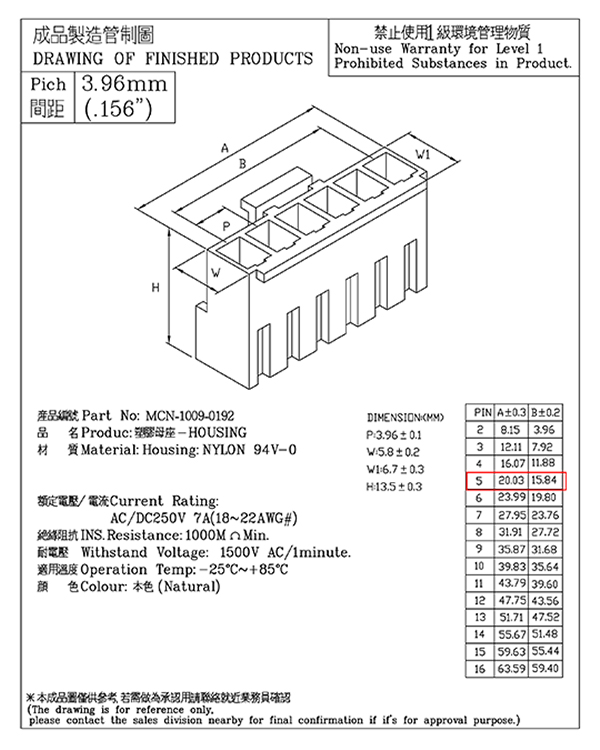

Product Specification
Material：
Housing: NYLON 94V-0
Current Rating: AC/DC 250V, 7A (18~22Awg)
Resistance: 1000M Ohm Min.
Withstand Voltage: 1500V AC/1 minute
Operation Temp: -25°C~85°C
Color: Natural
PIN
A+/-0.3mm
B+/-0.2mm
2
8.15
3.96
3
12.11
7.92
4
16.07
11.88
5
20.03
15.84
6
23.99
19.8
7
27.95
23.76
8
31.91
27.72
9
35.87
31.68
10
39.83
35.64
11
43.79
39.6
12
47.75
43.56
13
51.71
47.52
14
55.67
51.48
15
59.63
55.44
16
63.59
59.4
Pins & Pitch can be selected.
