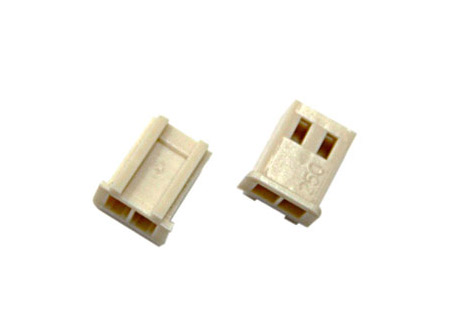

Specification
- Circuits:2-20
- Voltage rating: AC 250V, DC 350V
- Current rating: AC, DC, 2A
- Withstand voltage: 1000V AC/min.
- Insulation resistance: 1000MΩ min.
- Temperature range:-25°C~+85°C
- Contact resistance: Initial Value/10mΩ min.
- After environmental testing/20mΩ max.
Material
- UL94V-0
- Nylon 66
- Pins can be selected.
| Circuits |
Part NO. |
Dimensions in.(mm) |
| A |
B |
| 2 |
7225-H2 |
0.218(5.54) |
0.098(2.50) |
| 3 |
7225-H3 |
0.317(8.04) |
0.197(5.00) |
| 4 |
7225-H4 |
0.415(10.54) |
0.295(7.50) |
| 5 |
7225-H5 |
0.516(13.10) |
0.394(10.00) |
| 6 |
7225-H6 |
0.612(15.54) |
0.492(12.50) |
| 7 |
7225-H7 |
0.710(18.04) |
0.591(15.00) |
| 8 |
7225-H8 |
0.809(20.54) |
0.689(17.50) |
| 9 |
7225-H9 |
0.907(23.04) |
0.787(20.00) |
| 10 |
7225-H10 |
1.006(25.54) |
0.886(22.50) |
| 11 |
7225-H11 |
1.104(28.04) |
0.984(25.00) |
| Circuits |
Part NO. |
Dimensions in.(mm) |
| A |
B |
| 12 |
7225-H12 |
1.202(30.54) |
1.083(27.50) |
| 13 |
7225-H13 |
1.301(33.04) |
1.181(30.00) |
| 14 |
7225-H14 |
1.399(35.54) |
1.280(32.50) |
| 15 |
7225-H15 |
1.498(38.04) |
1.378(35.00) |
| 16 |
7225-H16 |
1.596(40.54) |
1.476(37.50) |
| 17 |
7225-H17 |
1.694(43.04) |
1.575(40.00) |
| 18 |
7225-H18 |
1.793(45.54) |
1.673(42.50) |
| 19 |
7225-H19 |
1.891(48.04) |
1.772(45.00) |
| 20 |
7225-H20 |
1.990(50.54) |
1.870(47.50) |
| Circuits |
Part NO. |
Dimensions in.(mm) |
| Straight |
Right Angle |
A |
B |
| 2 |
7225-PV2 |
7225-PR2 |
0.197(5.00) |
0.098(2.50) |
| 3 |
7225-PV3 |
7225-PR3 |
0.295(7.50) |
0.197(5.00) |
| 4 |
7225-PV4 |
7225-PR4 |
0.394(10.00) |
0.295(7.50) |
| 5 |
7225-PV5 |
7225-PR5 |
0.492(12.50) |
0.394(10.00) |
| 6 |
7225-PV6 |
7225-PR6 |
0.591(15.00) |
0.492(12.50) |
| 7 |
7225-PV7 |
7225-PR7 |
0.689(17.50) |
0.591(15.00) |
| 8 |
7225-PV8 |
7225-PR8 |
0.787(20.00) |
0.689(17.50) |
| 9 |
7225-PV9 |
7225-PR9 |
0.886(22.50) |
0.787(20.00) |
| 10 |
7225-PV10 |
7225-PR10 |
0.984(25.00) |
0.886(22.50) |
| 11 |
7225-PV11 |
7225-PR11 |
1.083(27.50) |
0.984(25.00) |
| Circuits |
Part NO. |
Dimensions in.(mm) |
| Straight |
Right Angle |
A |
B |
| 12 |
7225-PV12 |
7225-PR12 |
1.181(30.00) |
1.083(27.50) |
| 13 |
7225-PV13 |
7225-PR13 |
1.280(32.50) |
1.181(30.00) |
| 14 |
7225-PV14 |
7225-PR14 |
1.378(35.00) |
1.280(32.50) |
| 15 |
7225-PV15 |
7225-PR15 |
1.476(37.50) |
1.378(35.00) |
| 16 |
7225-PV16 |
7225-PR16 |
1.575(40.00) |
1.476(37.50) |
| 17 |
7225-PV17 |
7225-PR17 |
1.673(42.50) |
1.575(40.00) |
| 18 |
7225-PV18 |
7225-PR18 |
1.772(45.00) |
1.673(42.50) |
| 19 |
7225-PV19 |
7225-PR19 |
1.870(47.50) |
1.772(45.00) |
| 20 |
7225-PV20 |
7225-PR20 |
1.969(50.00) |
1.870(47.50) |
TERMINAL
PART NO: 7225-BS2
| Applicable wire |
Material |
Finish |
Thickness |
Q'Ty/reel |
| 28-22 AWG |
Phos, brooze |
Tin-plated |
0.2mm |
10,000pcs |
