MCN-1009-0119

  • MCN-1009-0119
  • MCN-1009-0119
Description
Housing. Power Conn, 2.5mm 2 Pins, Male, Black, JS6503-02
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Voltage Rating:250V AC/DC
  • Current Rating:3A AC/DC
  • Withstanding Voltage:1000V AC/minute
  • Insulation Resistance:500MΩ MIN

PLUG HOUSING

  • Poles: 2-12 (Single Row);16-18(Double Row)
  • Material: Nylon 66 UL94V-0
  • Qty:1000 pcs/Bag

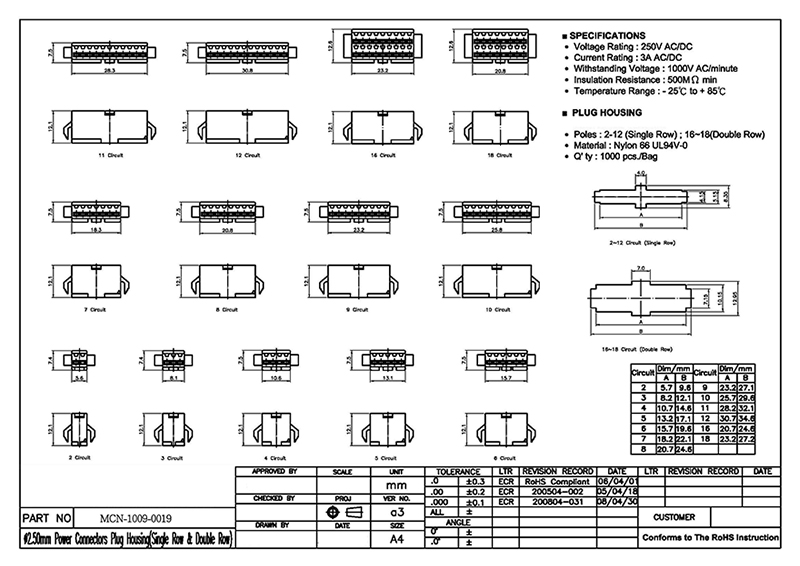

PIN A(mm) B(mm)
2 5.7 9.6
3 8.2 12.1
4 10.7 14.6
5 13.2 17.1
6 15.7 19.6
7 18.2 22.1
8 20.7 24.6
9 23.2 27.1
10 25.7 29.6
11 28.2 32.1
12 30.7 34.6
16 33.2 37.1
18 35.7  39.6

Pins & Pitch can be selected.
