MCN-1009-0022
MCN-1009-0022
Description

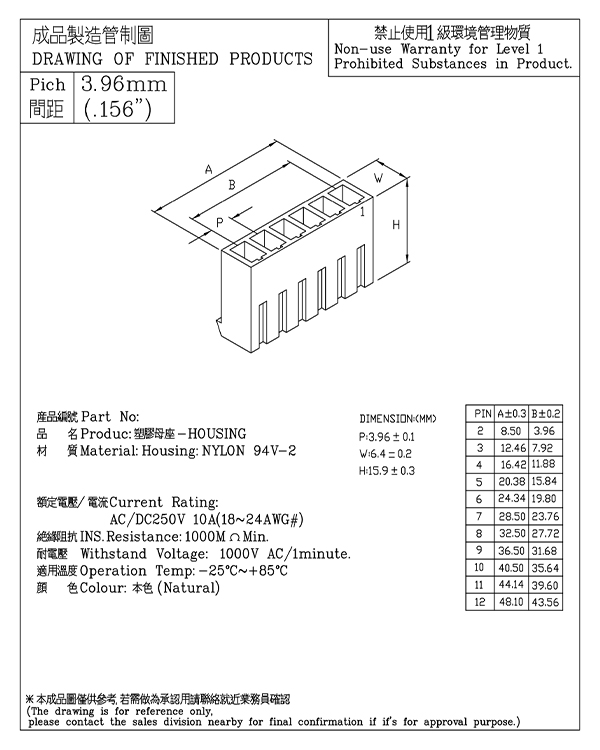

Housing. 3.96mm, 2 Pins, A7.82mm, H17mm, JP2422
PREV PRO.
Inquiry
NEXT PRO.
Product Specification
Material：
Housing: Nylon 94V-2
Current Rating: AC/DC 250V 10A(18~24 Awg)
Resistance: 1000M Ω Min.
Withstand Voltage: 1000V AC/1minute
Operation temp: -25°C~85°C
Color: Natural
PIN
A+/-0.3mm
B+/-0.2mm
2
8.5
3.96
3
12.46
7.92
4
16.42
11.88
5
20.38
15.84
6
24.34
19.8
7
28.3
23.76
8
32.26
27.72
9
36.22
31.68
10
40.18
35.64
11
44.14
39.6
12
48.1
43.56
Pins & Pitch can be selected.
