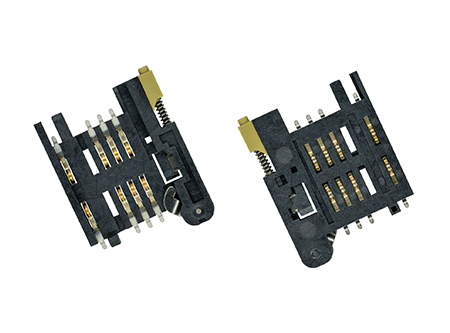

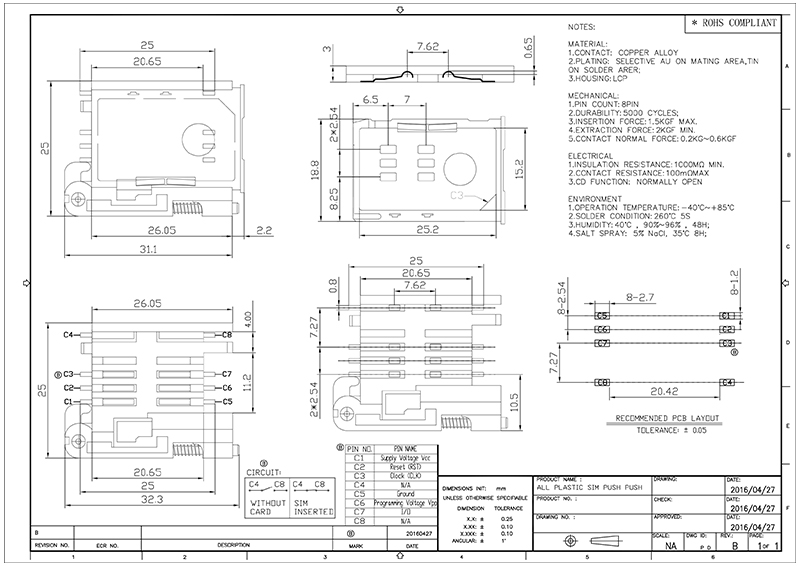

MCN-1023-0010

Specification:

1. Contact : Copper Alloy
2. Plating : Selective Gold (Au) on mating area, tin on solder area
3. Housing : LCP

Mechanical:

1. PIN Count: 8 Pins
2. Durability: 5000 cycles
3. Insertion Force: 1.5 kgf Max.
4. Extraction Force : 2 kgf Min.
5. Contact Normal Force : 0.2 Kg ~ 0.6 Kg

Electrical:

1. Insulation Resistance : 1000MΩ Min.
2. Contact Resistance : 100MΩ Max
3. CD Function : Normally open

Environment:

1. Operation Temperature : -40℃~+85℃
2. Solder Condition :260℃ for 5 seconds
3. Humidity: -40℃ , 90% ~ 96 %, 48 hours
4. Salt Spray : 5% NaCl, 35℃ for 8 hours
