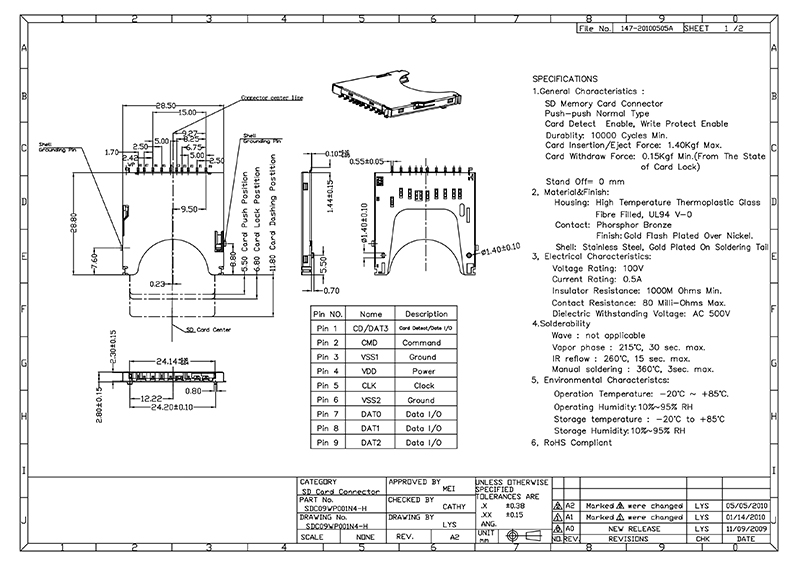

MCN-1022-0009

Specification:

1. General Characteristics:

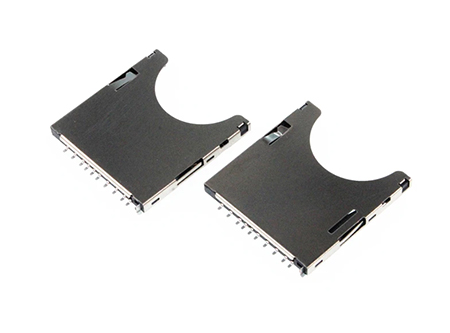

   SD Memory Card Connector
   Push-push Normal Type
   Card Detect Enable, Write Protect Enable
   Durability : 10000 Cycles Min.
   Card Insertion/Eject Force : 1.4 Kgf Max.
   Card Withdraw Force : 0.15 Kgf Min. (From The State of Card Lock)
   Stand Off=0 mm
2. Material & Finish :
   Housing: High Temperature Thermoplastic Glass Fiber Filled, UL94 V-0
   Contact: Phosphor Bronze
   Finish : Gold Flash Plated Over Nickel.
   Shell : Stainless Steel, Gold Plated On Soldering Tail
3. Electrical Characteristics:
   Voltage Rating: 100V
   Current Rating: 0.5A
   Insulator Resistance: 1000M Ohms Min.
   Contact Resistance: 80 Milli-Ohms Max.
   Dielectric Withstanding Voltage : AC 500V
4. Solderability
   Wave : not applicable
   Vapor phase : 215 °C, 30 sec. max.
   IR reflow: 260 ℃, 15 sec. max.
   Manual soldering : 360 ℃, 3 sec. max.
6. Environmental Characteristcs:
   Operation Temperature: -20 °C ~ + 85 °C.
   Operation Humidity: 10%~95% RH
   Storage temperature: -20°C to 85°C
   Storage Humidity: 10%~95% RH
