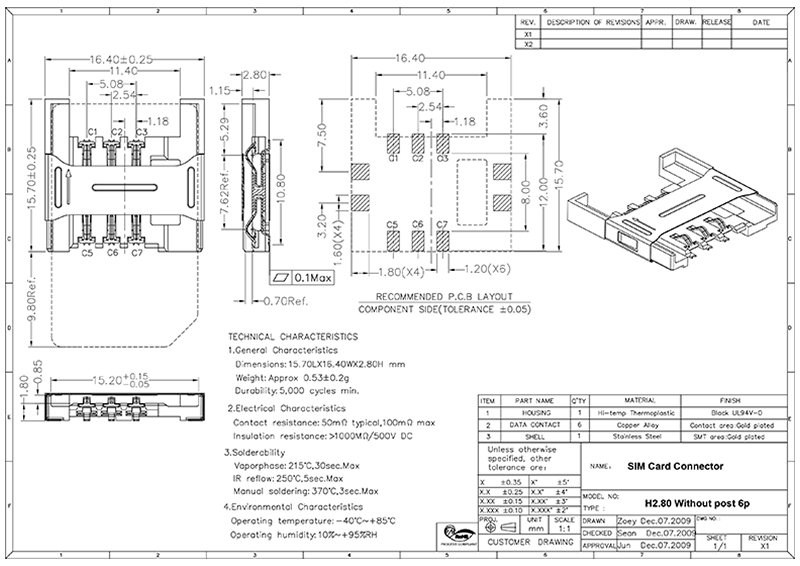

MCN-1023-0006

Specification:

1. General Characteristics
   Dimensions :15.7L x 16.4W x 2.8H mm
   Weight : Approx 0.53 +/- 0.2g
   Durability : 5000 cycles min.
2. Electrical Characteristics
   Contact resistance: 50mΩ typical, 100mΩ max
   Insulation resistance: > 1000MΩ/500V DC
3. Solderability
   Vaporphase:215℃, 30 sec. Max
   IR reflow:250℃, 5 sec. Max
   Manual soldering: 370℃, 3 sec. Max
4. Environmental Characteristics
   Operating temperature: -40℃~+85℃
   Operating humidity : 10%~+95% RH
