MCN-1007-0021
MCN-1007-0021
Description
IDC Socket. 2.54*2.54mm, 2*20 Pins, G/F, Black, w/ Strain Relief, For 1.27mm F/R Cable, 1001
PREV PRO.
Inquiry
NEXT PRO.

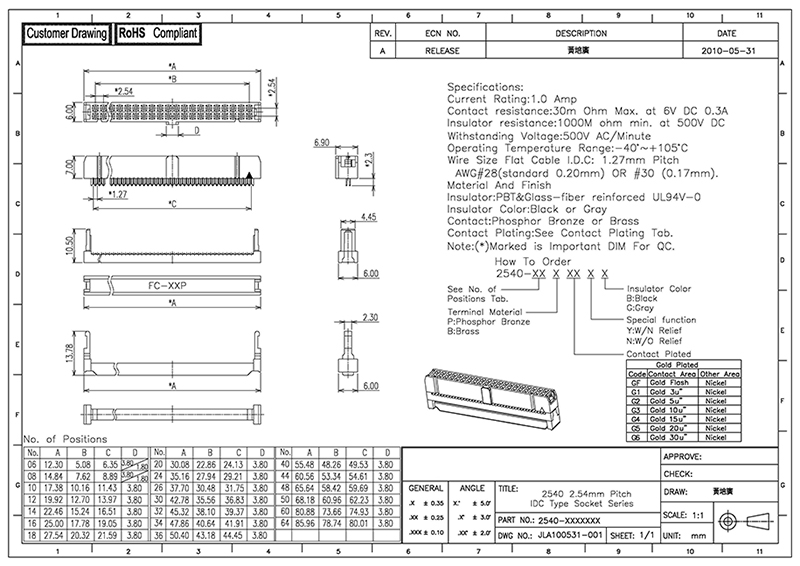

Product Specification
SPECIFICATIONS
Current Rating :1 Amp
Contact Resistance : 30 mΩ Max at 6V DC 0.3A
Insulator Resistance : 1,000 MΩ Min AT 500V DC
Withstanding Voltage: 500V AC/Minute
Operation Temperature :- 45℃ to + 105℃
Wire Size Flat Cable IDC:1.27mm Pitch
AWG#28(standard 0.2mm) OR #30 (0.17mm)
MATERIAL and Finish
Insulator : PBT, UL 94V-0
Contact : Phosphor Bronze or Brass
Contact Plating: Gold Plated、Tin Plated
