Description
DIP Plug. 2.54*2.54mm, 2*5 Pins, 180 D, DIP, PBT, H5.1mm, Ph/B, S/G, Black, For 1.27mm F/R Cable
PREV PRO. Inquiry NEXT PRO.
  • Product Specification



SPECIFICATIONS

  • Contact Current Rating ：1 Amp
  • Contact Resistance ： 20 mΩ Max
  • Insulator Resistance ： 1,000 MΩ Min
  • Dielectric Withstanding Voltage： 500V AC RMS 60 Seconds
  • Cable: Pitch 0.635mm Flat Cable

MATERIAL

  • Insulator ： PBT, UL 94V-0
  • Contact ： Brass or Phosphor Bronze
  • Contact Plated： Gold Plated over Nickel
  • Solder Area-Nickle Plated
  • Operation Temperature ：- 40℃ to + 105℃

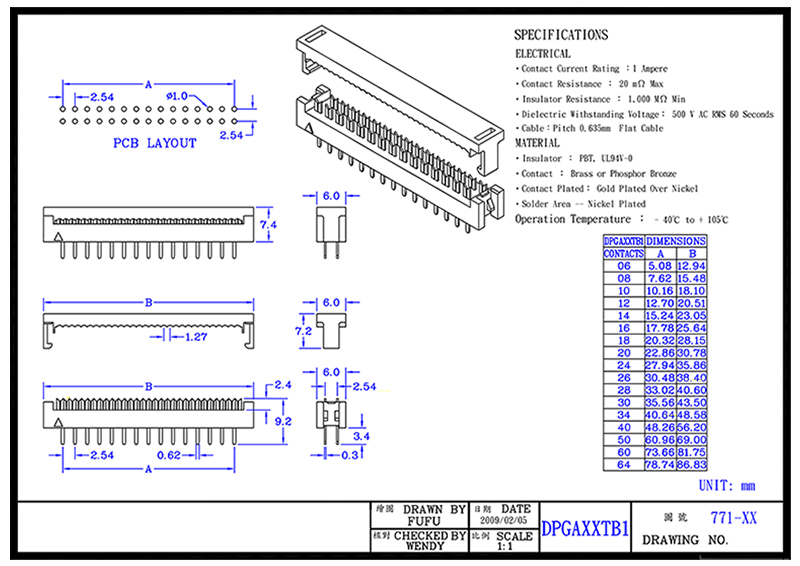

  DIMENSION(mm)
PIN A B
 6 5.08 12.94
8 7.62 15.48
10 10.16 18.10
12 12.70 20.51
14 15.24 23.05
16 17.78 25.64
18 20.32 28.15
20 22.86 30.78
24 27.94 35.86
26 30.48 38.40
28 33.02 40.60
30 35.56 43.50
34 40.64 48.58
40 48.26 56.20
50 60.96 69.00
60 73.66 81.75
64 78.74 86.83
