MCN-1004-0003
MCN-1004-0003
Description
IC Socket. 2.54mm, 2*8 Pins, Narrow, 0.3", DIP
PREV PRO.
Inquiry
NEXT PRO.
Product Specification
SPECIFICATIONS
Contact Current Rating :1 Amp
Contact Resistance : 20 mΩ Max
Insulator Resistance : 1,000 MΩ Min
Dielectric Withstanding Voltage: 1,000V AC RMS 60 Seconds
MECHANICAL
Insertion Force : 340 g Max / Pin
Extraction Force : 50 g Min / Pin
MATERIAL
Insulator : PBT, UL 94V-0
Contact : Phosphor Bronze
Contact Plated: Tin Plated
Operation Temperature :- 25℃ to + 85℃

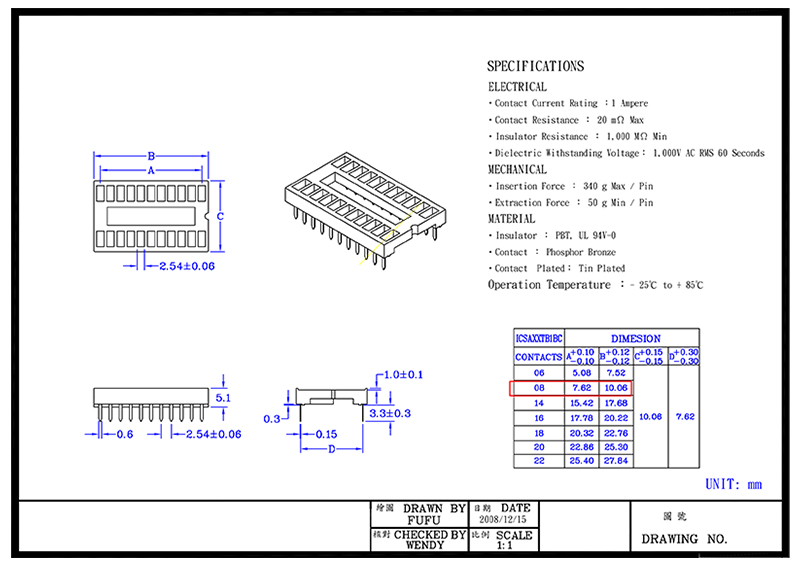

DIMENSION(mm)
Contacts
A+/-0.1
B+/-0.12
C+/-0.15
D+/-0.3
6
5.08
7.52
10.06
7.62
8
7.62
10.06
14
15.42
17.68
16
17.78
20.22
18
20.32
20.76
20
22.86
25.30
22
25.40
27.84
Pins can be selected.
