MCN-1004-0031
MCN-1004-0031
Description
IC Socket. 2.54mm, 2*10 Pins, Round Pin, Narrow, 0.3", DIP
PREV PRO.
Inquiry
NEXT PRO.

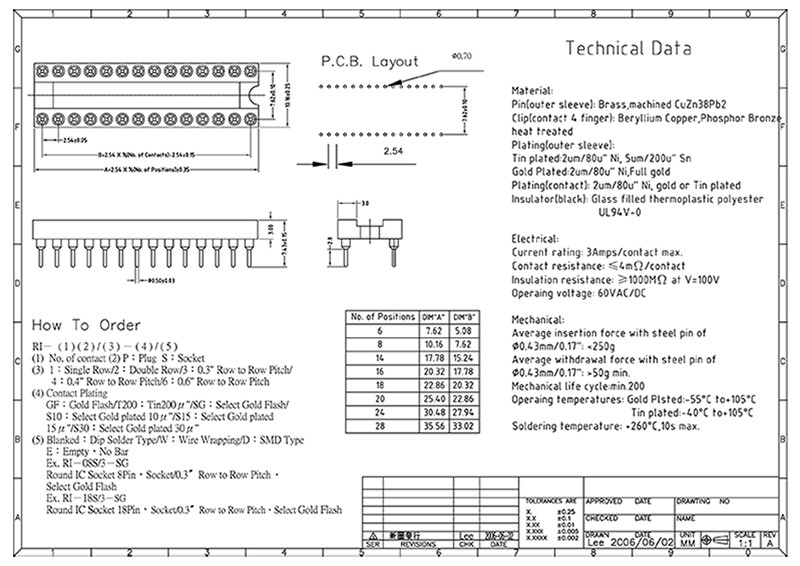

Product Specification
Material
Pin(outer sleeve) :Brass, machined CuZn38Pb2
Clip(contact 4 finger) :Beryllium Copper, Phosphor Bronze heat treated
Plating (outer sleeve)
Tin plated:2um/80u’’ Ni, 5um/200u’’ Sn
Gold Plated:2um/80u’’ Ni, Full gold
Plating(contact) :2um/80u’’ Ni, gold or Tin plated
Insulator(black) :Glass filled thermoplastic polyester:UL94V0
Electrical
Current rating: 3 Amps/contact max.
Contact resistance:<=4mΩ/contact
Insulation resistance:>=1000MΩ at V=100V
Operating voltage:60VAC/DC
Mechanical
Average insertion force with steel pin of Ø0.43mm/0.17” :<250g
Average withdrawal force with steel pin of Ø0.43mm/0.17” :>50g min
Mechanical life cycle:min. 200
Operating temperatures:
Gold plated:- 55℃ to + 105℃
Tin plated:- 40℃ to + 105℃
Soldering temperature:+260℃, 10s max.
PIN
A+/-0.35
B+/-0.15
6
7.62
5.08
8
10.16
7.62
14
17.78
15.24
16
20.32
17.78
18
22.86
20.32
20
25.4
22.86
24
30.48
27.94
28
35.56
33.02
Pins can be selected.
