MCN-1004-0047
MCN-1004-0047
Description
IC Socket. 2.54mm, 1*6 Pins, Round Pin, DIP
PREV PRO.
Inquiry
NEXT PRO.

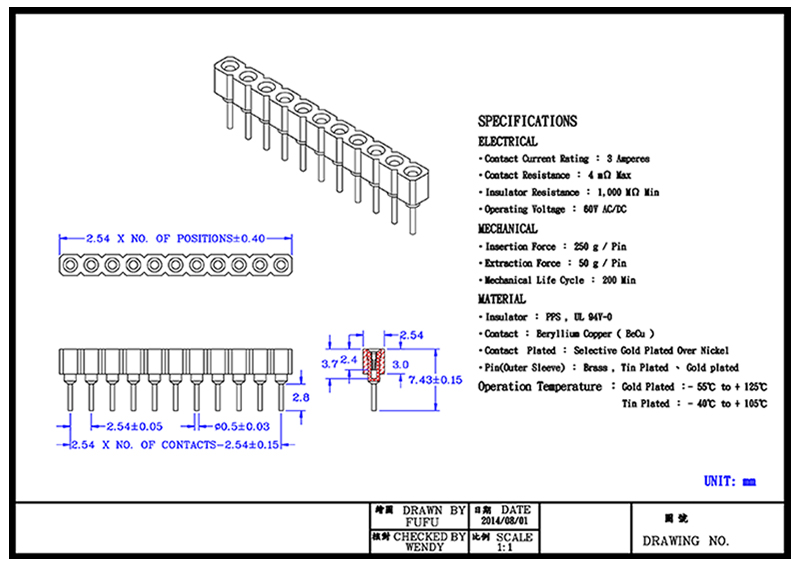

Product Specification
SPECIFICATIONS
Contact Current Rating :3 Amp
Contact Resistance : 4 mΩ Max
Insulator Resistance : 1,000 MΩ Min
Operating Voltage: 60V AC/DC
MECHANICAL
Insertion Force : 250 g / Pin
Extraction Force : 50 g / Pin
Mechanical Life Cycle:200 Min
MATERIAL
Insulator : PPS, UL 94V-0
Contact:Beryllium Copper (BeCu)
Contact Plated: Selective Gold Plated Over Nickel
Pin(Outer Sleeve) :Brass, Tin Plated, Gold Plated
Operation Temperature :Gold Plated:- 55℃ to + 125℃
Tin Plated:- 40℃ to + 105℃
Pins can be selected.
