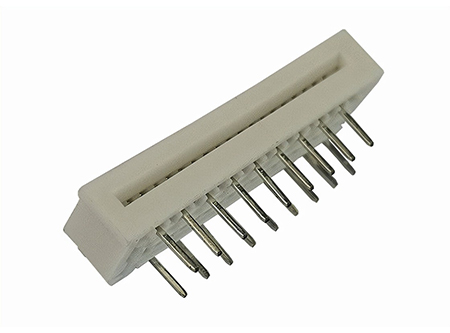

SPECIFICATIONS：
Rating
Current Rating ：1.0 Amp
Operating Temperature：-40°C~+105°C
Voltage Rating ：200V AC/DC
Electrical：
Contact Resistance ：20 mΩ Max
Insulator Resistance：500 MΩ Min.
Withstanding Voltage：500 VAC Minute.
Material and Finish：
Housing: PBT, UL94V-0 Natural
Terminal: Phosphor Bronze
| |
DIMENSION |
| Contacts |
A |
B |
C |
| 3 |
9.40 |
5.50 |
2.50 |
| 4 |
10.65 |
6.75 |
3.75 |
| 5 |
11.90 |
8.00 |
5.00 |
| 6 |
13.15 |
9.25 |
6.25 |
| 7 |
14.40 |
10.50 |
7.50 |
| 8 |
15.65 |
11.75 |
8.75 |
| 9 |
16.90 |
13.00 |
10.00 |
| 10 |
18.15 |
14.25 |
11.25 |
| 11 |
19.40 |
15.50 |
12.50 |
| 12 |
20.65 |
16.75 |
13.75 |
| 13 |
21.90 |
18.00 |
15.00 |
| 14 |
23.15 |
19.25 |
16.25 |
| 15 |
24.40 |
20.50 |
17.50 |
| 16 |
25.65 |
21.75 |
18.75 |
| 17 |
26.90 |
23.00 |
20.00 |
| 18 |
28.15 |
24.25 |
21.25 |
| 19 |
29.40 |
25.50 |
22.50 |
| 20 |
30.65 |
26.75 |
23.75 |
| 21 |
31.90 |
28.00 |
25.00 |
| 22 |
33.15 |
29.25 |
26.25 |
| 23 |
34.40 |
30.50 |
27.50 |
| 24 |
35.65 |
31.75 |
28.75 |
| 25 |
36.90 |
33.00 |
30.00 |
| 26 |
38.15 |
34.25 |
31.25 |
| 27 |
39.40 |
35.50 |
32.50 |
| 28 |
40.65 |
36.75 |
33.75 |
| 29 |
41.90 |
38.00 |
35.00 |
| 30 |
43.15 |
39.25 |
36.25 |
| 31 |
44.40 |
40.50 |
37.50 |
| 32 |
45.65 |
41.75 |
38.75 |
Pins & Pitch can be selected.
