Applications:
PLC,DC-DC Converter, AC-DC Inverter, UPS, LCD Power control, OA equipment, Test equipment, Save energy lighting, etc.
Features & Electrical characteristics:
Ferrite core shape: EI
Ferrite core material: Mn-Zn
Bobbin shape: Vertical, Horizontal
Bobbin type: Pin, SMD
Inductance range: Customize
Dimension range: Customize
Operating temperature: -25℃ to 80℃
Frequency range: 15KHZ ~ 700KHZ
Hi-pot test: Customize
Safety: Class A(105℃), Class B(130℃), Class F(155℃), Class H(180℃)

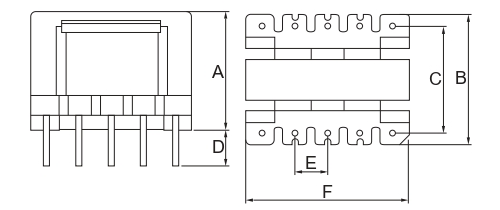

PART NO. & DIMENSIONS LINE
PART NO. & DIMENSIONS LINE
| PART NO. |
TYPE |
TERMINAL PINS |
Dimensions in mm |
| A |
B |
C ±0.5 |
D ±0.5 |
E |
F |
| EI-14 |
V |
6 |
12.0 |
13.0 |
10.5 |
4 |
3.2 |
14 |
| EI-22 |
V |
10 |
19.5 |
15.8 |
10.0 |
4 |
4 |
22 |
| EI-24 |
V |
6 |
18.5 |
20.5 |
17.5 |
4 |
5 |
24 |
| EI-28 |
V |
10 |
21.5 |
22.1 |
17.4 |
4 |
5 |
28 |
| EI-30 |
V |
10 |
26.0 |
21.6 |
17.3 |
4 |
5 |
30 |
| EI-33 |
V |
12 |
31.5 |
28.0 |
22.5 |
4 |
5 |
33 |
| EI-33-01 |
V |
18 |
32.0 |
28.1 |
22.6 |
4 |
5 |
43.7 |
| EI-40 |
V |
12 |
33.5 |
28.0 |
22.5 |
4 |
5 |
40 |
| EI-40-01 |
V |
16 |
35.5 |
28.5 |
22.8 |
4 |
5 |
42 |
| EI-50 |
V |
12 |
41.0 |
35.5 |
27.5 |
4 |
7.5 |
50 |
| EI-60 |
V |
12 |
45.0 |
45.0 |
35.0 |
5 |
7.5 |
60 |
